Gigabyte · A620 · Micro-ATX

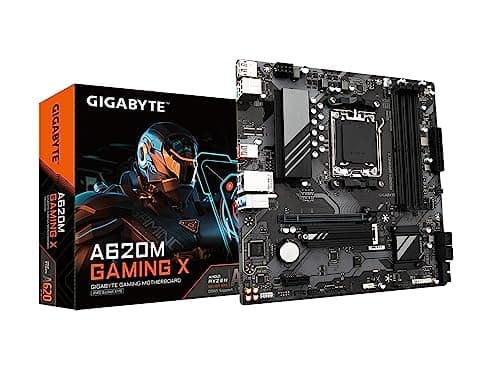

Gigabyte A620M Gaming X
- AM5
- DDR5-6400
- PCIe 4.0
- Tier C
- No Wi-Fi
- 2.5 GbE
The Gigabyte A620M Gaming X holds about 290 W of sustained core power across 8 Vcore stages, which is the figure every processor on this page is measured against.
By Farrukh Sufyan Sarwar · Last verified 19 September 2026 · Model v1.0 · Build 2026-09-20
- Sustained capacity
- 290 W
- Derated for design and cooling
- Vcore stages
- 8 × 46 A
- Phase design
- Doubled phases
- VRM cooling
- Light heatsink
- Memory slots
- 4 × DDR5
- Up to 128 GB
- Validated speed
- 6400 MT/s
- M.2 slots
- 2
- Graphics slot
- PCIe 4.0 x16
- BIOS Flashback
- No
Power delivery
The Gigabyte A620M Gaming X carries 8 Vcore power stages rated 46 A each in a doubled arrangement, under light heatsinks. Derating for the design and the cooling, our model puts it at roughly 290 W of sustained core power, which is enough for everything up to the AMD Ryzen 9 9900X3D at 160 W. That figure is published here rather than a marketing total because the phases that feed the SoC and the integrated graphics carry none of the CPU's core load.
What it throttles
Every AM5 processor in this database runs on the Gigabyte A620M Gaming X without throttling. Its power delivery is not the constraint on this platform, so pick your processor on price and core count and move on.
Lane layout
Every AM5 processor on this board
| Processor | Verdict | VRM °C | Score | Clock loss |
|---|---|---|---|---|
| AMD Ryzen 5 7600X3D6 cores · 80 W sustained · Zen 4 V-Cache | No throttle | 56 | 83 | 0 % |
| AMD Ryzen 7 9700X8 cores · 88 W sustained · Zen 5 | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 5 9600X6 cores · 88 W sustained · Zen 5 | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 5 76006 cores · 88 W sustained · Zen 4 | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 7 8700G8 cores · 88 W sustained · Zen 4 (Phoenix) | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 5 8600G6 cores · 88 W sustained · Zen 4 (Phoenix) | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 5 7500F6 cores · 88 W sustained · Zen 4 | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 7 77008 cores · 88 W sustained · Zen 4 | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 5 8500G6 cores · 88 W sustained · Zen 4 (Phoenix) | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 5 96006 cores · 88 W sustained · Zen 5 | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 9 790012 cores · 88 W sustained · Zen 4 | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 7 8700F8 cores · 88 W sustained · Zen 4 (Phoenix) | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 5 8400F6 cores · 88 W sustained · Zen 4 (Phoenix) | No throttle | 58 | 82 | 0 % |
| AMD Ryzen 7 7800X3D8 cores · 105 W sustained · Zen 4 V-Cache | No throttle | 61 | 78 | 0 % |
| AMD Ryzen 5 7600X6 cores · 135 W sustained · Zen 4 | No throttle | 69 | 72 | 0 % |
| AMD Ryzen 9 7900X3D12 cores · 135 W sustained · Zen 4 V-Cache | No throttle | 69 | 72 | 0 % |
| AMD Ryzen 7 9800X3D8 cores · 140 W sustained · Zen 5 V-Cache | No throttle | 69 | 71 | 0 % |
| AMD Ryzen 9 7950X3D16 cores · 140 W sustained · Zen 4 V-Cache | No throttle | 69 | 71 | 0 % |
| AMD Ryzen 7 7700X8 cores · 140 W sustained · Zen 4 | No throttle | 69 | 71 | 0 % |
| AMD Ryzen 9 9900X3D12 cores · 160 W sustained · Zen 5 V-Cache | No throttle | 74 | 67 | 0 % |
| AMD Ryzen 9 9900X12 cores · 160 W sustained · Zen 5 | No throttle | 74 | 67 | 0 % |
| AMD Ryzen 9 9950X3D16 cores · 225 W sustained · Zen 5 V-Cache | Moderate | 89 | 53 | 4 % |
| AMD Ryzen 9 9950X16 cores · 225 W sustained · Zen 5 | Moderate | 89 | 53 | 4 % |
| AMD Ryzen 9 7950X16 cores · 225 W sustained · Zen 4 | Moderate | 89 | 53 | 4 % |
| AMD Ryzen 9 7900X12 cores · 225 W sustained · Zen 4 | Moderate | 89 | 53 | 4 % |
